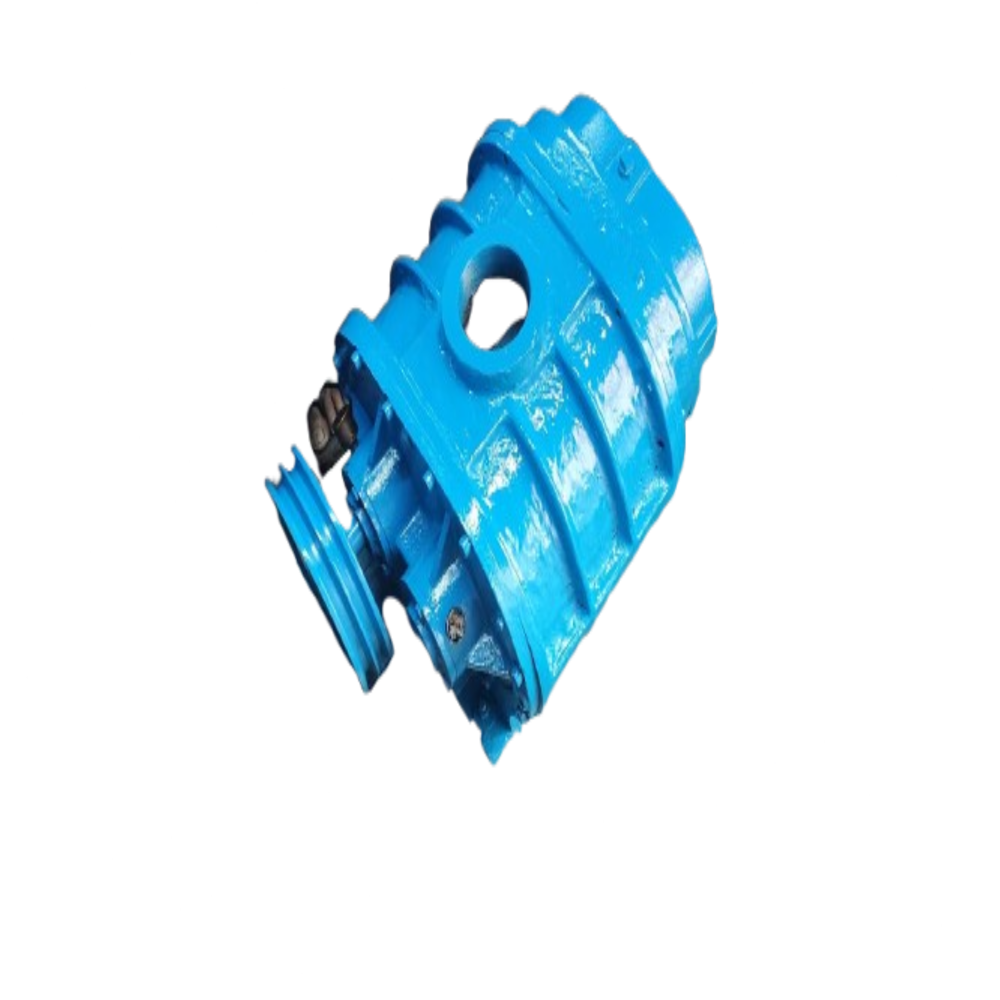

TWIN LOBE AIR BLOWER

Name: TWIN LOBE AIR BLOWER
Brand: RAMA MACHINERY MANUFACTURING INDUSTRIES
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TWIN LOBE AIR BLOWER Specification

Temperature Range
Up to 80C

Shelf Life
15 Years

Equipment Type
Air Blower

Packaging Type
Wooden Box

Grade Standard
Industrial Grade

Equipment Type
Twin Lobe Air Blower

Dimension (L*W*H)
Depends on model (customizable)

Voltage
220V / 380V / 415V

Mounting
Base Mounted

Pressure Range
0.1 kg/cm2 to 1.0 kg/cm2

Rotor Material
SG Iron or equivalent

Cooling
Air Cooled

Applications
Effluent Treatment Plant, Water Treatment, Pneumatic Conveying, Aquaculture, etc.

Material of Construction
Cast Iron / Mild Steel / Stainless Steel (as per order)

Lobe Type
Twin Lobe

Feature
Low Noise, High Efficiency, Durable Design

Lubrication
Oil Splash Lubrication

Drive Type
V-Belt / Direct Coupling

Air Capacity
30 m3/hr to 10,000 m3/hr

TWIN LOBE AIR BLOWER Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
4 Days

Sample Available
No

About TWIN LOBE AIR BLOWER

We supply Twin Lobe Rotary Air Blowers for Air Agitation units for Electroplating process tanks.

Models available suitable for AC induction 3Phase Motors :

3HP/5HP/7.5HP and above capacity

Engineered for Versatile Industrial Applications

The Twin Lobe Air Blower is designed to cater to a diverse range of industries, including effluent and water treatment plants, aquaculture, and pneumatic conveying. Its customizable specifications and choice of construction materials make it adaptable to varying plant requirements, ensuring reliable air supply even in demanding environments.

Superior Performance and Longevity

Manufactured with a durable base-mounted structure, oil splash lubrication, and premium rotor materials such as SG Iron, this air blower guarantees long operational life-up to 15 years. Its efficient, low-noise operation and robust construction ensure consistent performance and minimal maintenance in harsh industrial settings.

FAQ's of TWIN LOBE AIR BLOWER:

Q: How is the Twin Lobe Air Blower installed and operated?

A: The blower can be installed using either a V-belt or direct coupling drive, depending on the model and application needs. It should be base-mounted on a level surface, ensuring proper alignment for efficient operation. Once installed, it runs on supplied voltage (220V, 380V, or 415V), with air-cooled, oil splash lubrication maintaining the system.

Q: What applications are best suited for this air blower?

A: This air blower is ideal for effluent treatment plants, water treatment facilities, pneumatic conveying systems, and aquaculture. Its wide air capacity and pressure range make it adaptable for processes requiring consistent and efficient air supply.

Q: When should I consider using a Twin Lobe Air Blower?

A: You should choose a Twin Lobe Air Blower when your process demands continuous, oil-free air at pressures between 0.1 kg/cm2 and 1.0 kg/cm2, especially where low noise and high durability are necessary, such as in industrial water treatment or conveying applications.

Q: Where is this blower typically installed within a plant layout?

A: It is base-mounted, typically situated near the application site-such as adjacent to aeration tanks in treatment plants or at the start of conveying lines-ensuring efficient air delivery and minimizing losses due to distance.

Q: What is the benefit of using oil splash lubrication in these blowers?

A: Oil splash lubrication provides continuous, even lubrication to internal components, reducing wear and extending operational life. This system also contributes to low maintenance requirements and high reliability over the blower's 15-year shelf life.

Q: How does the choice of material affect the air blower's performance?

A: Selecting cast iron, mild steel, or stainless steel as the construction material tailors the blower to specific environments-offering corrosion resistance, strength, or cost-effectiveness as required by the application. Rotor material options like SG Iron enhance durability and efficiency.

Q: What are the key advantages of this Twin Lobe Air Blower?

A: Key advantages include low noise, high efficiency, a durable design, customizable dimensions, and compatibility with various voltage standards. Its robust construction ensures a long service life, while versatile mounting and drive options allow integration into different industrial setups.
